详解Spring事务Transaction设置的五种注入方法

副标题#e#

前段时间对Spring的事务设置做了较量深入的研究，在此之间对Spring的事务设置虽说也设置过，可是一直没有一个清楚的认识。通过这次的进修觉察Spring的事务设置只要把思路理清，照旧较量好把握的。

总结如下：

Spring设置文件中关于事务设置老是由三个构成部门，别离是DataSource、TransactionManager和署理机制这三部门，无论哪种设置方法，一般变革的只是署理机制这部门。

DataSource、TransactionManager这两部门只是会按照数据会见方法有所变革，好比利用Hibernate举办数据会见时，DataSource实际为SessionFactory，TransactionManager的实现为HibernateTransactionManager。

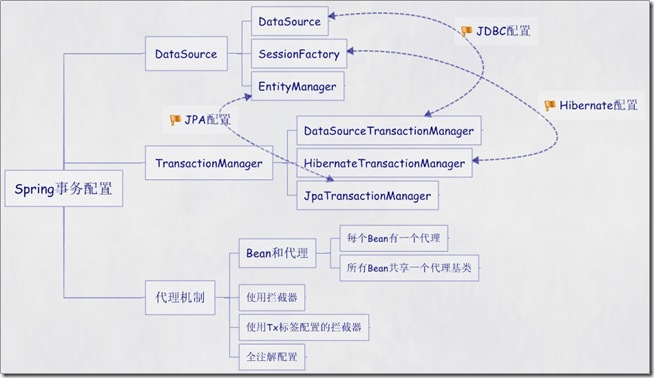

详细如下图：

按照署理机制的差异，总结了五种Spring事务的设置方法，设置文件如下：

第一种方法：每个Bean都有一个署理

<?xml version="1.0"encoding="UTF-8"?>
 <beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:context="http://www.springframework.org/schema/context"
 xmlns:aop="http://www.springframework.org/schema/aop"
 xsi:schemaLocation="http://www.springframework.org/schema/beans
 http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
 http://www.springframework.org/schema/context
 http://www.springframework.org/schema/context/spring-context-2.5.xsd
 http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd">

 <bean id="sessionFactory"
 class="org.springframework.orm.hibernate3.LocalSessionFactoryBean">
 <property name="configLocation" value="classpath:hibernate.cfg.xml"  />
 <property name="configurationClass" value="org.hibernate.cfg.AnnotationConfiguration"  />
 </bean>

 <!-- 界说事务打点器（声明式的事务） -->
 <bean id="transactionManager"
 class="org.springframework.orm.hibernate3.HibernateTransactionManager">
 <property name="sessionFactory" ref="sessionFactory"  />
 </bean>

 <!-- 设置DAO -->
 <bean id="userDaoTarget" class="com.bluesky.spring.dao.UserDaoImpl">
 <property name="sessionFactory" ref="sessionFactory"  />
 </bean>

 <bean id="userDao"
 class="org.springframework.transaction.interceptor.TransactionProxyFactoryBean">
 <!-- 设置事务打点器 -->
 <property name="transactionManager" ref="transactionManager"  />
 <property name="target" ref="userDaoTarget"  />
 <property name="proxyInterfaces" value="com.bluesky.spring.dao.GeneratorDao"  />
 <!-- 设置事务属性 -->
 <property name="transactionAttributes">
 <props>
 <prop key="*"> PROPAGATION_REQUIRED </prop>
 </props>
 </property>
 </bean>
 </beans>

第二种方法：所有Bean共享一个署理基类

<?xml version="1.0"encoding="UTF-8"?>
 <beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:context="http://www.springframework.org/schema/context"
 xmlns:aop="http://www.springframework.org/schema/aop"
 xsi:schemaLocation="http://www.springframework.org/schema/beans
 http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
 http://www.springframework.org/schema/context
 http://www.springframework.org/schema/context/spring-context-2.5.xsd
 http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd">

 <bean id="sessionFactory"
 class="org.springframework.orm.hibernate3.LocalSessionFactoryBean">
 <property name="configLocation" value="classpath:hibernate.cfg.xml"  />
 <property name="configurationClass" value="org.hibernate.cfg.AnnotationConfiguration"  />
 </bean>

 <!-- 界说事务打点器（声明式的事务） -->
 <bean id="transactionManager"
 class="org.springframework.orm.hibernate3.HibernateTransactionManager">
 <property name="sessionFactory" ref="sessionFactory"  />
 </bean>

 <bean id="transactionBase"
 class="org.springframework.transaction.interceptor.TransactionProxyFactoryBean"
 lazy-init="true" abstract="true">
 <!-- 设置事务打点器 -->
 <property name="transactionManager" ref="transactionManager"  />
 <!-- 设置事务属性 -->
 <property name="transactionAttributes">
 <props>
 <prop key="*">PROPAGATION_REQUIRED </prop>
 </props>
 </property>
 </bean>

 <!-- 设置DAO -->
 <bean id="userDaoTarget" class="com.bluesky.spring.dao.UserDaoImpl">
 <property name="sessionFactory" ref="sessionFactory"  />
 </bean>

 <bean id="userDao" parent="transactionBase">
 <property name="target" ref="userDaoTarget"  />
 </bean>
 </beans>

第三种方法：利用拦截器

#p#分页标题#e#

#p#副标题#e#

<?xml version="1.0"encoding="UTF-8"?>
 <beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:context="http://www.springframework.org/schema/context"
 xmlns:aop="http://www.springframework.org/schema/aop"
 xsi:schemaLocation="http://www.springframework.org/schema/beans
 http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
 http://www.springframework.org/schema/context
 http://www.springframework.org/schema/context/spring-context-2.5.xsd
 http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd">

 <bean id="sessionFactory"
 class="org.springframework.orm.hibernate3.LocalSessionFactoryBean">
 <property name="configLocation" value="classpath:hibernate.cfg.xml"  />
 <property name="configurationClass" value="org.hibernate.cfg.AnnotationConfiguration"  />
 </bean>

 <!-- 界说事务打点器（声明式的事务） -->
 <bean id="transactionManager"
 class="org.springframework.orm.hibernate3.HibernateTransactionManager">
 <property name="sessionFactory" ref="sessionFactory"  />
 </bean>

 <bean id="transactionInterceptor"
 class="org.springframework.transaction.interceptor.TransactionInterceptor">
 <property name="transactionManager" ref="transactionManager"  />
 <!-- 设置事务属性 -->
 <property name="transactionAttributes">
 <props>
 <prop key="*">PROPAGATION_REQUIRED </prop>
 </props>
 </property>
 </bean>

 <bean class="org.springframework.aop.framework.autoproxy.BeanNameAutoProxyCreator">
 <property name="beanNames">
 <list>
 <value> *Dao </value>
 </list>
 </property>
 <property name="interceptorNames">
 <list>
 <value> transactionInterceptor </value>
 </list>
 </property>
 </bean>

 <!-- 设置DAO -->
 <bean id="userDao" class="com.bluesky.spring.dao.UserDaoImpl">
 <property name="sessionFactory" ref="sessionFactory"  />
 </bean>
 </beans>

第四种方法：利用tx标签设置的拦截器

<?xml version="1.0"encoding="UTF-8"?>
 <beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:context="http://www.springframework.org/schema/context"
 xmlns:aop="http://www.springframework.org/schema/aop"
 xmlns:tx="http://www.springframework.org/schema/tx"
 xsi:schemaLocation="http://www.springframework.org/schema/beans
 http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
 http://www.springframework.org/schema/context
 http://www.springframework.org/schema/context/spring-context-2.5.xsd
 http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd
 http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd">

 <context:annotation-config  />
 <context:component-scan base-package="com.bluesky"  />

 <bean id="sessionFactory"
 class="org.springframework.orm.hibernate3.LocalSessionFactoryBean">
 <property name="configLocation" value="classpath:hibernate.cfg.xml"  />
 <property name="configurationClass" value="org.hibernate.cfg.AnnotationConfiguration"  />
 </bean>

 <!-- 界说事务打点器（声明式的事务） -->
 <bean id="transactionManager"
 class="org.springframework.orm.hibernate3.HibernateTransactionManager">
 <property name="sessionFactory" ref="sessionFactory"  />
 </bean>

 <tx:advice id="txAdvice" transaction-manager="transactionManager">
 <tx:attributes>
 <tx:method name="*" propagation="REQUIRED"  />
 </tx:attributes>
 </tx:advice>

 <aop:config>
 <aop:pointcut id="interceptorPointCuts"
 expression="execution(*com.bluesky.spring.dao.*.*(..))"  />
 <aop:advisor advice-ref="txAdvice"
 pointcut-ref="interceptorPointCuts"  />
 </aop:config>
 </beans>

第五种方法：全注解
